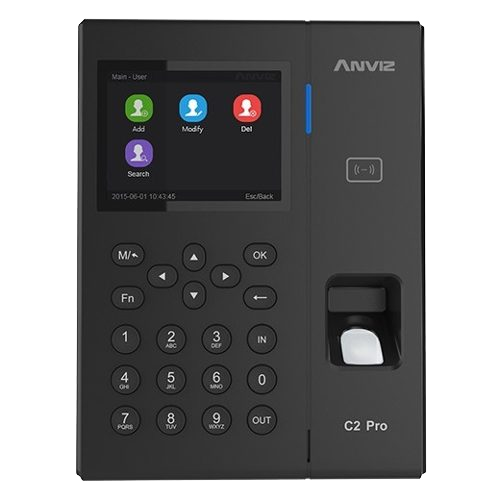

C2PRO-DUAL
A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay. Hybrid terminals combine access control and time and attendance control, being able to perform time and attendance control of workers at the moment they identify themselves.
This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz and MF of 13.56 MHz, as well as keypad for numeric codes and fingerprint biometrics.
Its 3.5" screen facilitates the operation and configuration of the equipment locally, both to use it autonomously without software, and to set some parameters required to connect to the software, such as network configuration.
The CrossChex Standard software is used to configure users, schedules and access groups, as well as special functions, relay opening times or reader reading times.
Anviz
High-performance time and attendance and access control terminal with WiFi
1 GHz dual-core processor
Linux operating system
Output for controller, relay SC011 or siren
Identification by EM/MF card, fingerprint, user, password and/or combinations
TFT screen 3.5" color
Capacity 5.000 users and 100.000 records
Programmable short messages
Voice indications

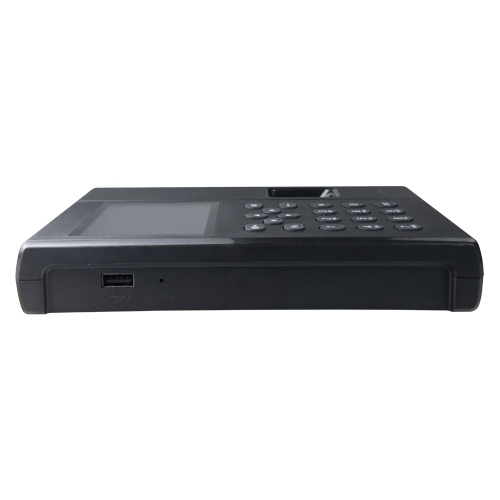

Input for USB Flash
WiFi and TCP/IP communication
Connection RS232 for printer
Schedules and shifts control
DC power supply 5V/12V 1A
CrossChex Standard management software included
Shift and schedule management via the free CrossChex Cloud
Indoor installation
Especificaciones
| Categoria | Terminals |
| Marca | ANVIZ |
| Stock | High |
| Capacidad | 5000 |
| Comunicacion | TCP/IP |
| Tecnologia rfid | EM (125 kHz) y MF (13.56 MHz) |
| Proteccion | Indoor |
| Identificacion | Fingerprint, Card and PIN |
| Tipo de dispositivo | Access and Attendance |
| Otros | Siren output |
| Registros | 100000 |
| Pantalla | 3.5TFT Color |
| Categoria | Terminales |
| Marca | ANVIZ |
| Stock | High |
| Capacidad | 5000 |
| Otros | Salida de sirena |
| Comunicacion | TCP/IP |
| Tecnologia rfid | EM (125 kHz) y MF (13.56 MHz) |
| Lcd | 3.5TFT Color |
| Identificacion | Huella, Tarjeta y PIN |
| Tipo de dispositivo | Accesos y Presencia |
| Registros | 100000 |
| Proteccion | Interior |
